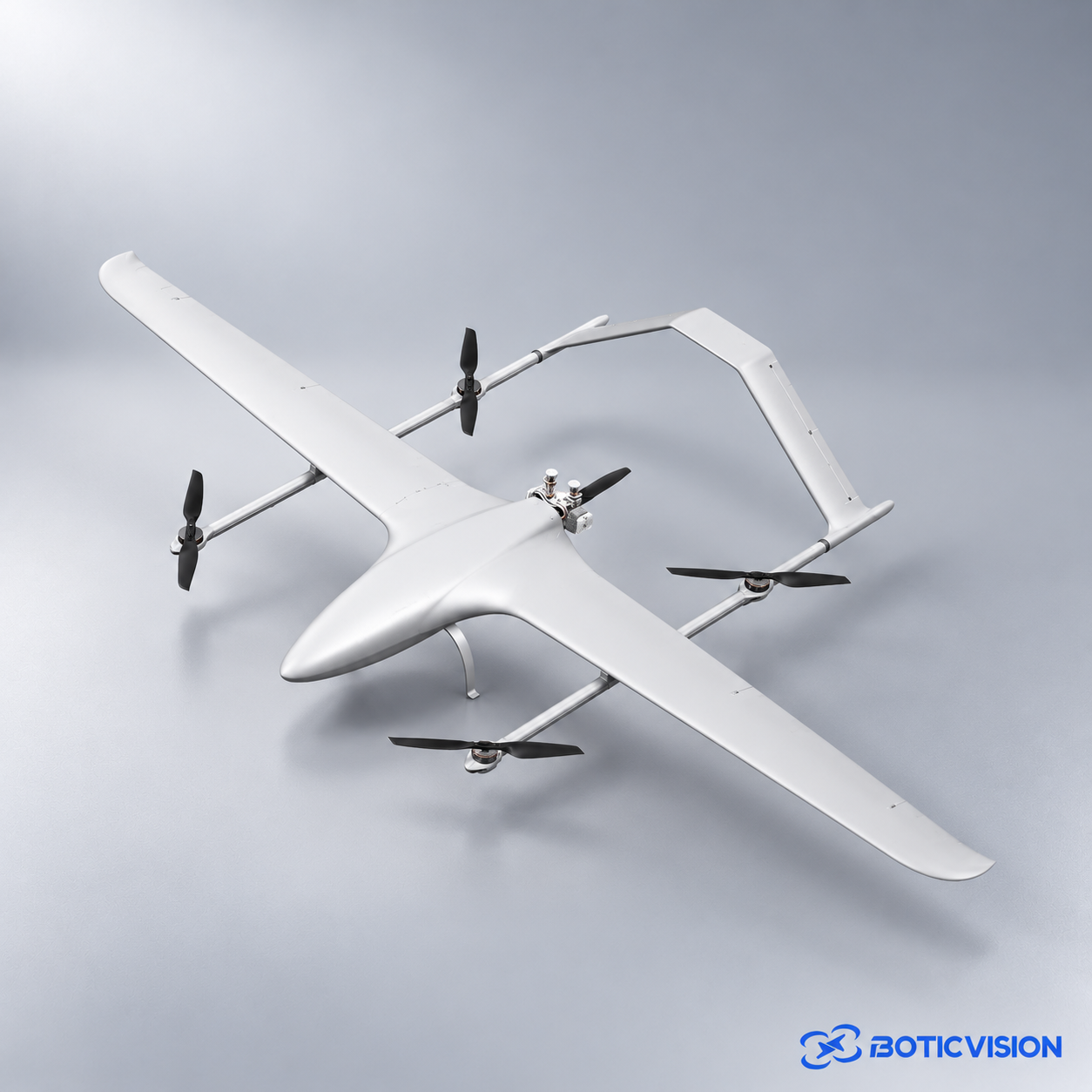

VT120 Heavy-Lift VTOL
industrial

VT120 Heavy-Lift VTOL

$84000

Specifications

Max Range500 km

Product Overview

The VT120 is a customized hybrid VTOL platform engineered for heavy payload missions requiring extended endurance and extreme temperature operation capability. With a massive 6000mm wheelbase and 120kg maximum takeoff weight, this professional platform delivers 30kg payload capacity with endurance exceeding 6 hours of continuous operation. The hybrid-electric system features a 30L fuel tank running on RON 95+ gasoline, combining electric precision with fuel efficiency for extended missions. Maximum speed of 130 km/h, climb rate of 4 m/s, and descent rate of 5 m/s ensure efficient mission execution. The 5000m service ceiling and Level 6 wind resistance accommodate challenging operational environments, while the exceptional operating temperature range from -40°C to 70°C enables operations in the most extreme climate conditions on Earth. Manual and fully autonomous route flight modes provide operational flexibility based on mission requirements. The VT120 excels in surveying and mapping operations in extreme environments, emergency disaster relief operations requiring heavy payload delivery to inaccessible areas, urgent supply delivery missions demanding extended endurance, and patrol inspection operations along extended infrastructure corridors in challenging climate conditions. Its combination of heavy payload capacity, extended endurance, and extreme temperature capability makes it the optimal solution for professional operations in the world's most demanding environments where other platforms cannot operate effectively.

Technical Specifications

Wheelbase6000mm
Max Takeoff Weight120 kg
Max Payload30 kg
Duration6+ hours
Max Climb Speed4 m/s
Max Descent Speed5 m/s
Max Speed130 km/h
Obstacle AvoidanceManual / Fully Autonomous Route Flight
Wind ResistanceLevel 6
Temperature Range-40°C to 70°C
Modules SystemHybrid-Electric / 30L Fuel Tank / RON 95+ Gasoline
Altitude5000 m

Application Scenarios

Surveying & MappingEmergency Disaster ReliefUrgent Supply DeliveryPatrol Inspection

Key Features

Customized Hybrid VTOL
High Payload
Multi-Mission
Extended Endurance
Extreme Temperature
